What are heavy machine operation modes?

Modern construction and earthmoving equipment come equipped with various operation modes, each designed to optimise performance for specific tasks and conditions. Whether you’re operating an excavator, wheel loader, or other heavy machinery, understanding these different modes is crucial for both efficiency and safety.

What Are Operation Modes?

Operation modes are pre-programmed settings that adjust how a machine responds to operator inputs and handles various tasks. Think of them as different “personalities” that the machine can adopt to best suit the work at hand. These modes typically modify engine speed, hydraulic power, and fuel consumption to achieve the optimal balance of performance and efficiency.

Types of Operation Modes

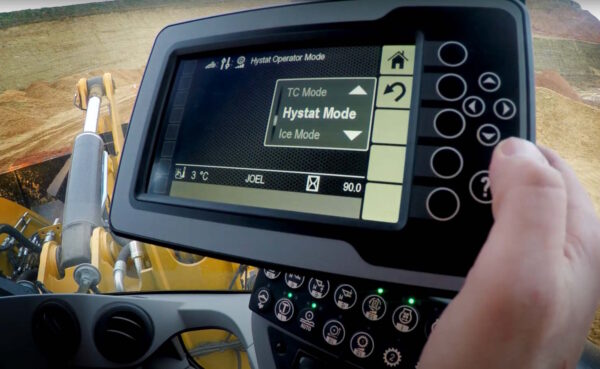

These vary in name and type across different brands and types of machines. They are usually either on a dial or can be accessed from a screen.

Power Mode

Power mode is designed for heavy-duty applications where maximum performance is required. When activated, this mode increases engine speed and hydraulic power output, allowing the machine to handle demanding tasks such as heavy excavation or lifting. While operating in power mode, the machine prioritises performance over fuel efficiency, making it ideal for situations where time is of the essence and the work requires maximum force.

Economy Mode

Economy mode, often abbreviated as ‘ECO mode’, is engineered to provide the best balance between performance and fuel efficiency. This mode reduces engine speed and optimises hydraulic pressure to maintain reasonable working power while consuming less fuel. It’s particularly useful for lighter tasks such as grading, finishing work, or when working in conditions that don’t require maximum power.

Fine Control Mode (Turtle or Tortoise mode)

Fine control mode, sometimes called precision mode, is specifically designed for tasks requiring careful movement and precise control. This mode reduces hydraulic flow rates and provides more graduated response to operator inputs. It’s particularly valuable when working in confined spaces, around utilities, or when performing detailed work such as final grading or placing materials with precision.

Lifting or Loading Mode

Many modern machines feature a dedicated lifting mode, which is optimised for material handling operations. This mode typically adjusts hydraulic pressures to provide smoother boom and arm movements while also engaging additional safety features such as increased hydraulic pressure and reduced swing speed to enhance load stability.

Driving and power train modes

Various modes may start the machine in first or second gear, reduce acceleration rates (e.g. for slippery surface driving), adjust the timing of the gearshift, and the amount of engine braking and coasting characteristics. Coasting enables you to save fuel in downhill stretches, but requires more uses of the brakes.

Idle mode

This allows the engine to run at low RPMs when it’s not actively working so that you save fuel.

Why Different Modes Matter

Fuel Efficiency Benefits

One of the primary advantages of having different operation modes is the ability to optimise fuel consumption. By matching the mode to the task at hand, operators can significantly reduce fuel usage without compromising productivity. For instance, using economy mode for lighter tasks can result in fuel savings of up to 20% compared to constantly operating in power mode.

Impact on Machine Longevity

Different operation modes not only affect immediate performance but also influence the long-term durability of your machine. When you use the appropriate mode for each task, you reduce unnecessary stress on components. For example, constantly running in power mode when it’s not required can lead to accelerated wear on hydraulic components and increased engine strain.

Understanding Mode Selection

Weather and Environmental Considerations

The choice of operation mode should take into account environmental conditions. In extreme weather, certain modes can help protect your machine. For instance, in very cold conditions, many machines offer a warming-up mode that helps protect the hydraulic system by gradually increasing oil temperature. Similarly, when working in hot conditions, economy mode can help reduce heat generation in the hydraulic system.

Ground Conditions and Mode Selection

Different ground conditions require different approaches to operation. On soft or unstable ground, fine control mode can help prevent over-excavation or loss of stability. When working on firm ground where maximum productivity is possible, power mode can be utilised to its full potential. Understanding how to match your mode selection to ground conditions is crucial for both safety and efficiency.

Task-Specific Mode Applications

Trenching Operations

When digging trenches, the choice of mode depends on several factors. For precise, narrow trenches where accuracy is crucial, fine control mode is ideal. For deeper trenches in hard ground, power mode might be necessary. For standard trenching in average conditions, economy mode often provides the best balance of performance and efficiency.

Material Handling

When using your machine for lifting and placing materials, lifting mode provides enhanced safety features and precise control. This mode is particularly important when handling pipes, placing concrete barriers, or moving other heavy objects where precise positioning is crucial.

Practical Tips for Mode Usage

Mode Switching Timing

Knowing when to switch between modes is as important as knowing which mode to use. Most manufacturers recommend changing modes when the machine is idle or between tasks rather than during operation. This helps prevent sudden changes in machine behaviour that could affect stability or control.

Monitoring and Feedback

Modern machines provide feedback through their display systems about mode performance. Learning to read and understand this information helps operators make better decisions about mode selection. Pay attention to fuel consumption rates, hydraulic temperatures, and engine load indicators to optimise your mode usage.

Training and Familiarisation

Before operating any machine in different modes, operators should thoroughly familiarise themselves with each mode’s characteristics. This includes understanding:

• How the machine responds differently in each mode
• What the visual indicators on the display mean
• How to quickly switch between modes when needed
• What safety features are activated or deactivated in each mode?

Conclusion

Understanding and properly utilising different operation modes is crucial for modern machine operation. These modes aren’t just marketing features; they’re sophisticated tools that, when used correctly, can significantly improve safety, efficiency, and machine longevity. By taking the time to learn about and properly implement different operation modes, operators can maximise their machine’s potential while minimising operating costs and wear.

Remember that while modes can enhance operation, they don’t replace operator skill and judgement. The best results come from combining proper mode selection with good operating practices and regular machine maintenance.
