Understanding Load Capacity and Weight Distribution on EWPs

Understanding the load capacity and weight distribution principles of an EWP is crucial for operational efficiency, safety compliance, and equipment longevity. This article explores the fundamental aspects of EWP load management that every business should comprehend to enhance workplace safety, improve operational productivity, and reduce unnecessary costs.

The Importance of Load Capacity Understanding

Load capacity refers to the maximum weight an EWP can safely support during operation. This rating is determined by manufacturers after extensive testing and is designed to ensure the platform remains stable under various working conditions. Ignoring these specifications can lead to catastrophic accidents (e.g. tipping over), equipment damage, and significant financial liabilities.

Every business that utilises EWPs must ensure that operators are thoroughly trained to understand load capacity limitations. This knowledge directly translates to improved productivity as it minimises work stoppages due to safety concerns or equipment failures. A comprehensive understanding of load capacity also extends equipment lifespan, reducing replacement and maintenance costs substantially.

Key Load Capacity Specifications

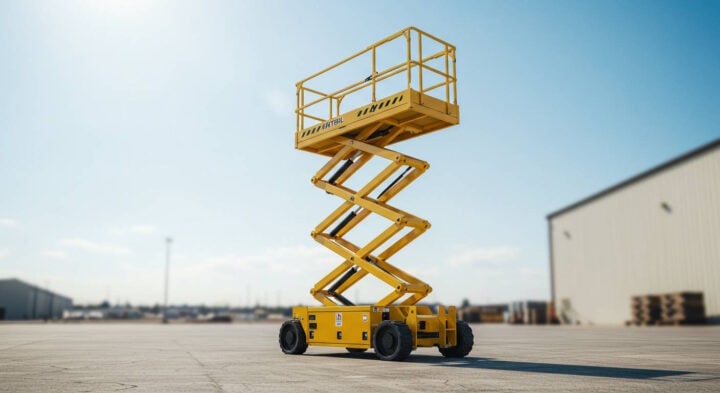

Scissor Lifts

Scissor lifts typically offer the highest load capacities among EWPs due to their stable design and vertical-only movement pattern. Capacities over a tonne are available.

These substantial capacities make scissor lifts ideal for tasks requiring multiple workers plus heavy tools and materials. However, businesses must note that the maximum capacity often decreases as the platform height increases on many models.

Boom Lifts

Boom lifts generally have lower weight capacities due to their extended reach capabilities but some can still lift up to 450kg (depending on the distance from the base).

The reduced capacity reflects the physics involved with extended horizontal reach. Most manufacturers implement automatic reach limitations that reduce maximum extension based on platform load weight to maintain stability.

Vertical Mast Lifts

Designed for compact indoor spaces, vertical mast lifts offer moderate capacities up to around 350kg, but usually less.

These specifications make them suitable for single-operator tasks with light to moderate tooling requirements.

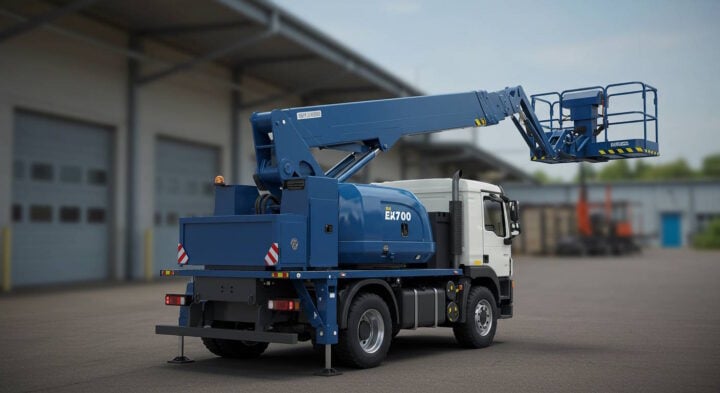

Vehicle-Mounted EWPs

Truck- or van-mounted EWPs vary considerably in capacity based on their configuration. A two-person bucket truck is likely to be rated to around 250kg.

These units offer excellent mobility between worksites while providing workable capacity for utilities maintenance and installation tasks.

Weight Distribution Principles

Even when operating within overall load capacity limits, improper weight distribution can compromise EWP stability. The centre of gravity concept is particularly important. Loads should be positioned as close to the centre of the platform as possible to maintain optimal balance. Uneven distribution can cause tipping, platform tilting, or control difficulties.

For businesses seeking to maximise productivity, ensuring proper weight distribution is non-negotiable. Workers can complete tasks more efficiently when the platform remains stable, and the risk of project delays due to safety incidents is significantly reduced. Additionally, even weight distribution minimises undue stress on mechanical components, extending equipment service life and reducing maintenance expenditure.

Environmental Factors Affecting Load Capacity

Environmental conditions impact EWP load capacity and stability. Wind forces, in particular, can effectively increase the load on the machine, especially when lifting materials with large surface areas. Temperature extremes, ground conditions, and inclines can also affect how an EWP handles its rated load.

Most EWPs must reduce their operational capacity in the following conditions:

• Wind speeds exceeding 12.5 m/s (45 km/h): Reduce capacity by 25-30%.
• Operating on gradients of 3-5 degrees: Reduce capacity by 10-15%
• Operating on soft or uneven ground: Reduce capacity by 20-25%.

However, it’s important to check the manufacturer’s manual as they may prohibit operation above these limits.

Businesses operating in challenging environments should implement comprehensive pre-operation assessments that factor in these variables. Adapting to environmental conditions by potentially reducing loads in adverse conditions may seem counterproductive initially but prevents costly accidents and equipment failures. This strategic approach to EWP operation ultimately preserves productivity and protects financial resources.

Digital Load Management Solutions

Modern EWPs increasingly feature advanced digital load management systems that provide real-time feedback on platform weight and distribution. These systems offer significant advantages for businesses:

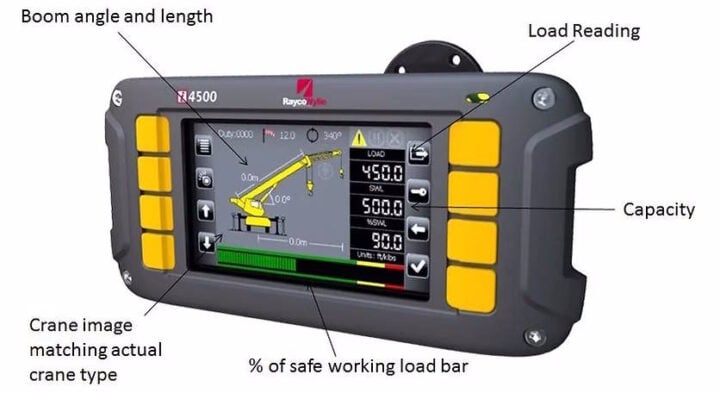

Load Moment Indicators

These sophisticated devices continuously monitor the relationship between load weight and boom extension, providing operators with immediate alerts when approaching stability limits. Businesses investing in equipment with this technology report up to 25% fewer load-related incidents and improved operational confidence.

Remote Monitoring Capabilities

Many newer EWP models allow supervisors to remotely monitor load conditions across multiple machines via smartphone applications or centralised dashboards. This capability enables more efficient resource allocation and proactive intervention before unsafe conditions develop.

Data Logging for Compliance

Digital systems automatically record load events, creating comprehensive documentation that satisfies regulatory requirements and provides valuable insights for operational improvement. This automation reduces administrative burden while enhancing safety compliance.

Industry-Specific Load Considerations

Construction Industry

Construction applications often involve lifting heavy building materials alongside workers. Specialised construction-focused EWPs may feature:

• Reinforced platforms capable of handling concentrated loads up to 150 kg/m²
• Material racks designed to distribute the weight of pipes, panels, or framing materials
• Extended platform options that maintain stability while increasing workspace

Maintenance and Facilities Management

These operations frequently require lifting specialised equipment:

• Air conditioning service: Allowances for refrigerant cylinders (typically 15-25 kg each)
• Electrical maintenance: Capacity for cable drums (30-50 kg) and switchgear components
• Glazing operations: Specialised suction equipment and glass panels

Event and Entertainment Industry

This sector presents unique challenges:

• Lighting equipment loads (fixtures weighing 15-30 kg each)
• Sound system components (speakers weighing 20-50 kg)
• Strict compliance with reduced capacity requirements during dynamic operations

Practical Implementation for Businesses

Implementing effective load management practices requires a systematic approach. Businesses should establish clear protocols for load calculation before EWP deployment. This includes weighing or estimating all tools, materials, and personnel that will occupy the platform.

A practical formula for businesses to calculate total platform load is Total Load = (Number of Personnel × Average Weight per Person) + Tool Weight + Materials Weight.

Where:

• Average weight per person is typically calculated at 90-100 kg (including PPE).
• Tool weight should be specifically measured for common equipment.
• Materials weight must be accurately determined before loading.

Documentation and checklists provide valuable reference points for operators and supervisors. These resources should be readily accessible and updated regularly to reflect current best practices and equipment specifications. By standardising these processes, businesses create consistency across operations, enhancing both safety and efficiency.

Cost-Benefit Analysis of Proper Load Management

Implementing thorough load management protocols delivers quantifiable financial benefits:

Direct Cost Savings

• Reduced equipment damage: Properly managed loads extend component life by 15-30%.
• Lower maintenance costs: Businesses report 20-25% reductions in unplanned maintenance expenditure.
• Decreased downtime: Properly loaded machines experience 30-40% fewer operational failures.

Insurance and Compliance Benefits

• Reduced insurance premiums: Some insurers might offer discounts for businesses with documented load management protocols.
• Lower regulatory compliance costs: Proper load management significantly reduces the likelihood of safety violations and associated penalties.

Conclusion

Understanding and properly managing load capacity and weight distribution on EWPs represents a significant opportunity for businesses to enhance safety, improve operational efficiency, and reduce costs. By investing in comprehensive training, establishing clear protocols, and remaining vigilant about environmental factors, companies can maximise the benefits of their EWP fleet while minimising risks.

The conscientious application of load management principles ultimately contributes to a more productive workplace where tasks are completed safely, equipment lasts longer, and unnecessary expenses are avoided. For any business utilising EWPs, this knowledge is not merely beneficial, it’s essential for sustained success in competitive industries.
