Heavy vehicle weights and loads

Vehicle weight definitions

The tare weight is the weight of the vehicle itself, not including any load. Gross weight or gross vehicle mass is the combined weight of a vehicle and its load, accessories, equipment and passengers.

Before an overweight vehicle or load can be used on the road, the driver must obtain an overweight permit, which must be carried in the vehicle. You can get one from your local NZTA office. You can find out more about permits and the requirements for load security in the heavy vehicle load restraint course.

Lashings and tie downs

lashings on a truck carrying concrete pipes
You can see in this image that the front pipe has two lashings through it to stop it rolling. The pipe is blocked by another concrete platter at the front and has chocks to also help prevent it shifting (these are small wooden blocks in a triangle shape. The load is distributed so that the centre of the heaviest part of the load (the two pipes) is just in front of the rear axle.

The combined rated strength of lashings or tie downs placed over rigid loads on heavy motor vehicles where loaded against a headboard must exceed that of the load.

The combined rated strength of lashings or tie downs placed over rigid loads on heavy motor vehicles where not loaded against a headboard must exceed twice that of the load.

For sideways forces, the load restraint system must be able to take at least half the weight of the load to keep it secure.

Anchor points to which lashings are secured must have a strength of at least the same strength as the lashings.

Load restraint ratings are for normal driving conditions; if you’re involved in a crash, the restraints could still break.

Axle loads

There are four types of axle: single (S), single large-tyred (SL), single mega-tyred axle, and twin-tyred (T).

The maximum load on a single standard-tyred axle is 6000kg.

The maximum load on a single large-tyred axle is 7200kg.

The maximum load on a single mega-tyred axle is 7600kg, or 7200kg if it’s a steering axle

The maximum load on a twin-tyred axle is 8200kg.

Axle type weight limits on heavy vehicles

Weights must be distributed so that at least 20% of the load remains over the front wheels. This is especially important in vehicles with a large rear overhang. When there’s not enough weight over the front wheels, steering performance is reduced and the vehicle is more likely to understeer (continue straight ahead even though the wheels are turned).

This axle loading diagram shows how much weight various combinations of tandem axles can take.

Tandem axle set weight limits

Tri-axle sets can take even more.

Tri-axle set weight limits

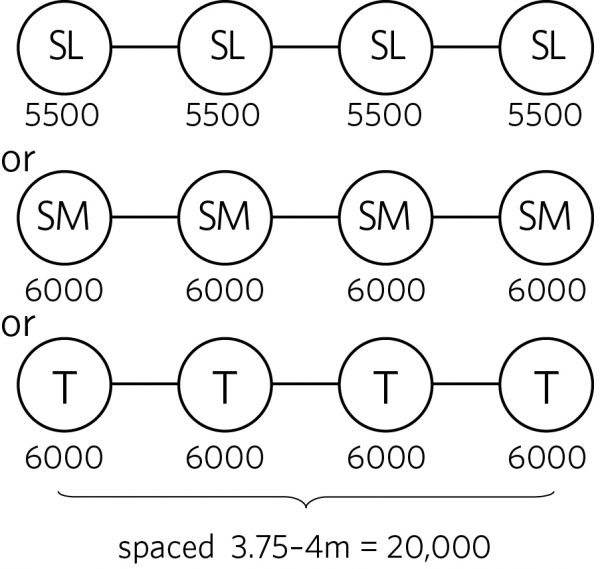

An quad axle sets, often seen on tankers can carry up to 20,000kg.

Quad-axle set weight limits

Maximum total mass for:

Vehicles of 7 or 8 axles

16.8m or more with a minimum of 7 axles: 45,000kg

17.4m or more with a minimum of 8 axles: 46,000kg

A-trains and B-trains

  • The combined gross mass of an A-train must not exceed 39 tonnes.
  • The combined gross mass of a B-train must not exceed 39 tonnes, unless it has:
    • at least two motor-driven axles in a tandem or tri axle set
    •  three motor-driven axles in a tri-axle set

Simple trailers

The gross mass of a simple trailer must not exceed 36 tonnes (or 40 tonnes if the towing connection is a roll-coupled hitch approved by the NZ Transport Agency).

Certificate of loading

A certificate of loading must contain the tare weight in kg, the gross laden weight in kg, the gross combination weight in kg (if the vehicle has a towing connection) and static roll threshold height and weight limits (when laden or unladen, most goods service vehicles with a maximum gross vehicle mass (GVM) exceeding 12 tonnes must have a static roll threshold (SRT) of at least 0.35 g (where g is the acceleration due to gravity)). The SRT won’t be on the CoL for a truck, but it will for a trailer.

If it’s a passenger vehicle it will show the seating capacity.
